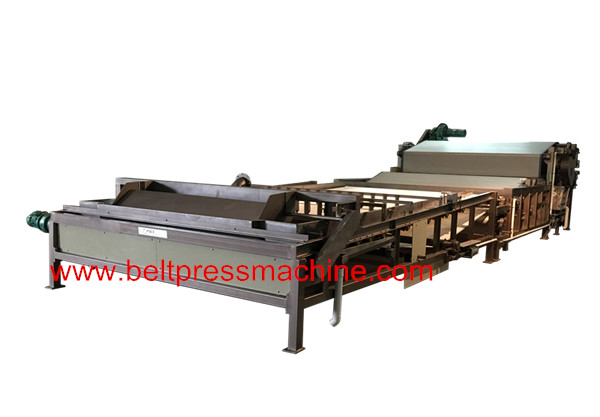

Introduction of the sludge belt press
As compared with common belt filter,this belt filter press comes with a separate gravity sludge thickener which is mainly used to reduce the flowability of target materials by removing free water and pore water away and to prepare for the next step of filter pressing.
While using the gravity thickener for sludge thickening,the belt filter press also employs the upper and lower belts which work for further gravity dewatering.The entrained water will be eliminated to a large extent as the material moves through the gravity zone that is 6 to 11 meters long. After this, the sludge could bear pretty big squeezing force.
Features of the sludge belt filter press
1. Our split style sludge filter press shows good machanical property and excellent corrosion resistance. When compared with common dewatering systems,its processing capacity is at least 1.5 times higher, the final moisture content is at least 10% lower, and the operation cost is cut down by 30% or even more.
2.This sludge treatment equipment has a split structure and the length of gravity thickener could be adjusted within a large range according to the original moisture content of the sludge and the requiements of customers.
Owing to these properties, this sludge belt filter press fits for large scale mines and large sewage treatment plants.

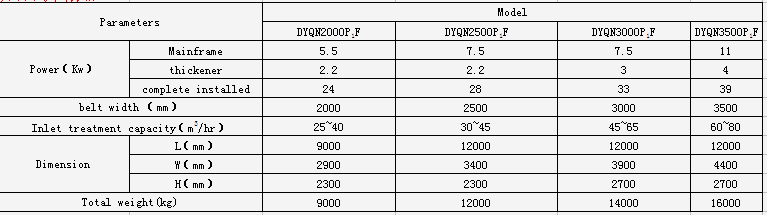

Technical Parameters:
